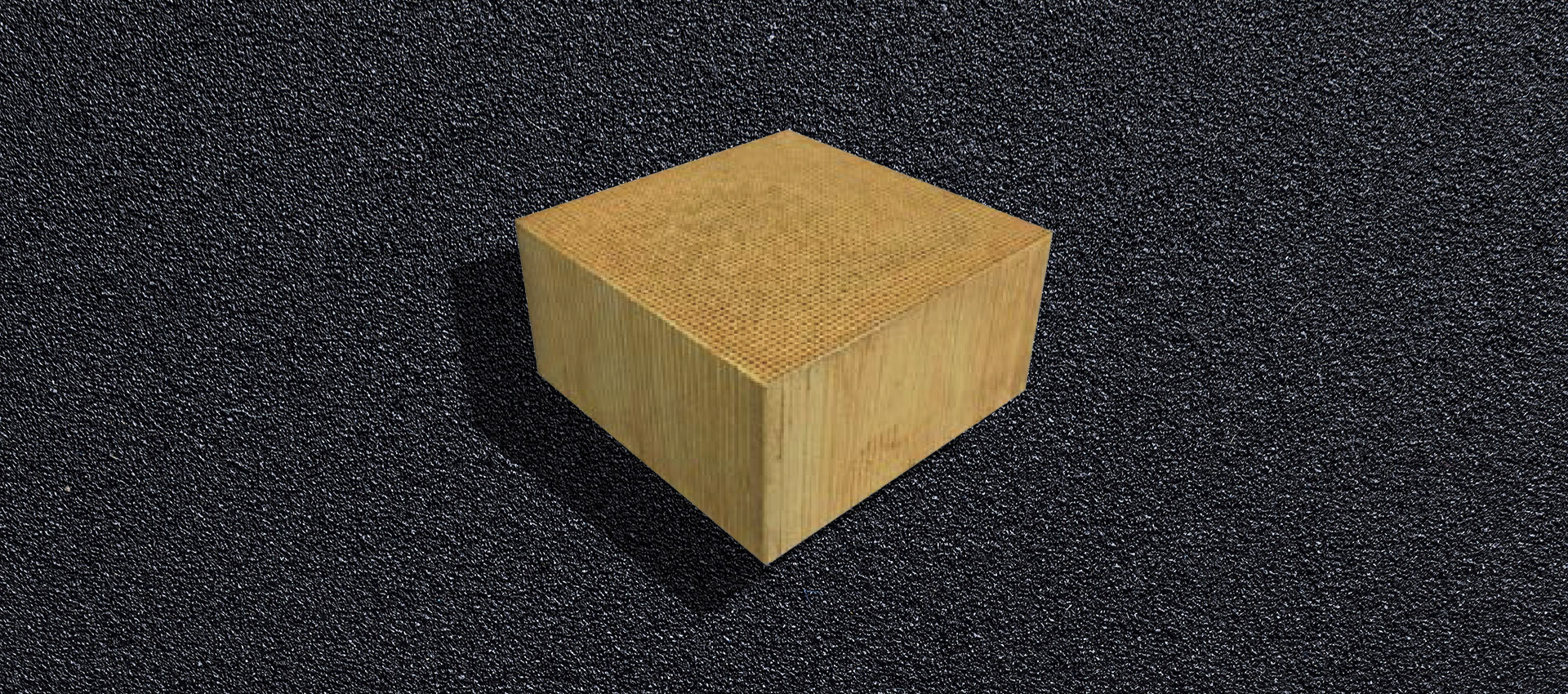

Characteristics of Precious Metal Catalysts

The high-activity 1-2 nm platinum-based catalyst is synthesized using imported technology. The developed platinum-based catalyst exhibits excellent overall performance and is suitable for conventional VOCs gas treatment. It features low ignition temperature and high stability. The catalyst consists of nano-scale platinum metal particles anchored onto the surface of an oxygen-supplying carrier material, forming a unique structural effect. By incorporating special materials to stabilize its structure, it achieves long service life and low-cost advantages, making it a cost-effective catalytic combustion catalyst applicable to CO (Catalytic Oxidation) and RCO (Regenerative Catalytic Oxidation) systems.

Basic Equipment Parameters (Precious Metal Catalyst)

Product Model		LMCY-1/1.5	LMCY-2/2.5	LMCY-3/3.5
Rated Air Volume under Standard Conditions	Nm³/hr	1000	2000	3000
Equipment Dimensions （mm）	L	1400	1400	1400
	W	1400	1400	1400
	H	2100	2800	3200
Weight	t	2	2.5	3
Precious Metal Catalyst Quantity	m³	0.1	0.2	0.3

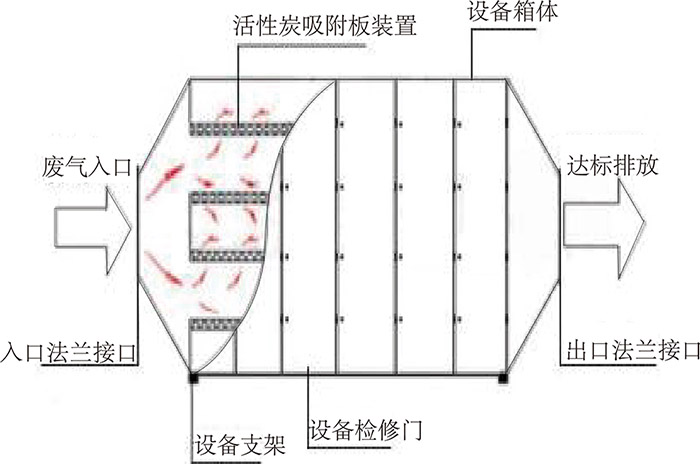

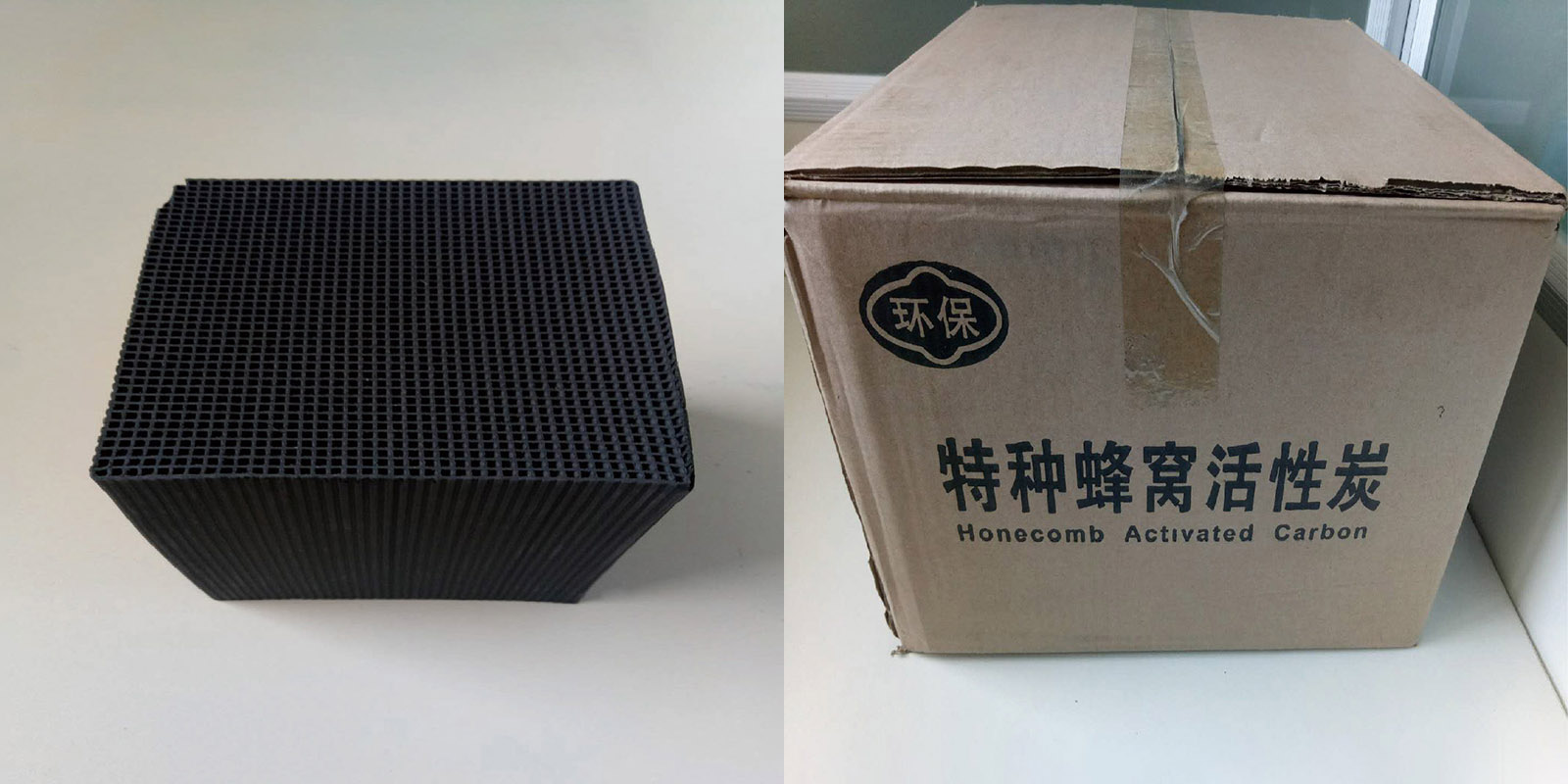

Characteristics of Honeycomb Activated Carbon Catalysts

1. High adsorption efficiency with wide applicability.
2. Easy maintenance with no specialized technical knowledge required.
3. Capable of treating multiple types of mixed waste gases simultaneously.

Basic Equipment Parameters (Honeycomb Activated Carbon)

Product Model		LMXS-10	LMXS-20	LMXS-30
Rated Air Volume under Standard Conditions	Nm³/hr	10000	20000	30000
Equipment Dimensions （mm）	L	1700	2700	3700
	W	1220	1220	1220
	H	1500	1500	1500
Weight	t	0.28	0.32	0.5
Honeycomb Activated Carbon Quantity	m³	0.8	1.6	2.4

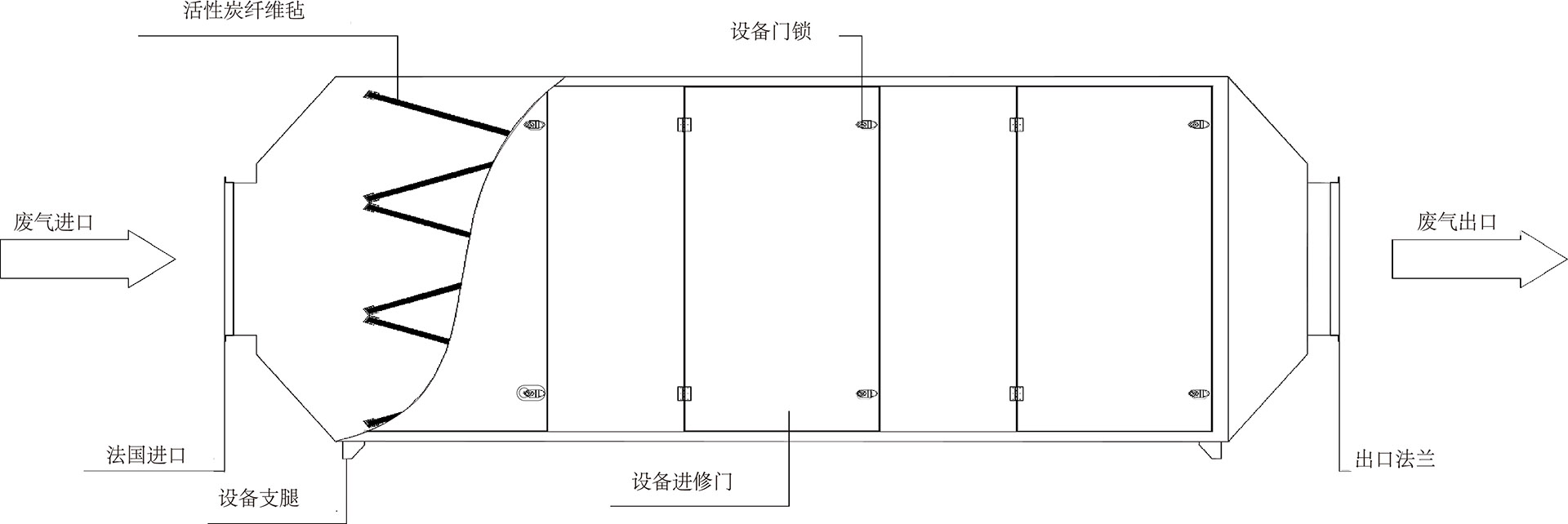

Characteristics of Activated Carbon Fiber Catalysts

1. Large adsorption capacity, high efficiency, and fast adsorption speed.
2. Convenient maintenance and replacement with no specialized technical knowledge required.
3. Capable of treating multiple types of mixed waste gases simultaneously.
4. High waste gas purification efficiency with minimal solid waste generation.
5. Effective in adsorbing large-molecule waste gases.

Basic Equipment Parameters (Activated Carbon Fiber)

Product Model		LMXSM-10	LMXSM-20	LMXSM-30
Rated Air Volume under Standard Conditions	Nm³/hr	10000	20000	30000
Equipment Dimensions （mm）	L	1800	2800	2800
	W	1200	1200	1600
	H	2000	2000	2000
Weight	t	0.36	0.42	0.5
Activated Carbon Fiber Quantity	m³	9	13	18
