Product Features

High Electron Energy in Electric Field Ensures Superior Treatment Efficiency
1. The low-temperature plasma generated by discharge possesses high electron energy, enabling interactions with nearly all types of odorant molecules.
2. Fast reaction speed; at certain gas velocities, the efficiency is 10 times higher than that of UV lamps of the same power.
3. Low gas flow resistance, making it suitable for high-volume waste gas treatment.

Low Maintenance Costs
1. Requires only electricity to operate, making it extremely simple to use.
2. The electric field unit only requires periodic cleaning and does not need replacement.

Clean Purification Method
1. VOCs are decomposed and oxidized through collisions with high-energy electrons, ultimately converting them into water and carbon dioxide.
2. No other pollutants are generated during the conversion process.

Scope of Application
1. Suitable for low-concentration, high-volume waste gas streams (generally < 300 mg/m³).

Technology Introduction

Chemical bond	Bond Length/(10-12m)	Bond energy/(KJ/mol)	Chemical bond	Bond Length/(10-12m)	Bond energy/(KJ/mol)
O-O	148	146	C-H	109	109
N-O	146	230	H-CL	127	127
S-S	207	268	O-H	98	98
C-S	182	272	O=O	120	120
C-O	143	326	C=S	124	124
C-C	154	332	N=O	114	114
S-H	135	339	C=C	134	134
N-H	101	389	C=O	120	120

Basic Equipment Parameters

Product Model		LMDL Z-10	LMDL Z-20	LMDL Z-30
Rated Air Volume under Standard Conditions	Nm3/hr	10000	20000	30000
Equipment Dimensions （mm）	L	2000	2700	3700
	W	1500	1500	1500
	H	1500	1500	1500
Weight	t	0.25	0.35	0.4
Rated Power	KM	2.4	4.8	7.2

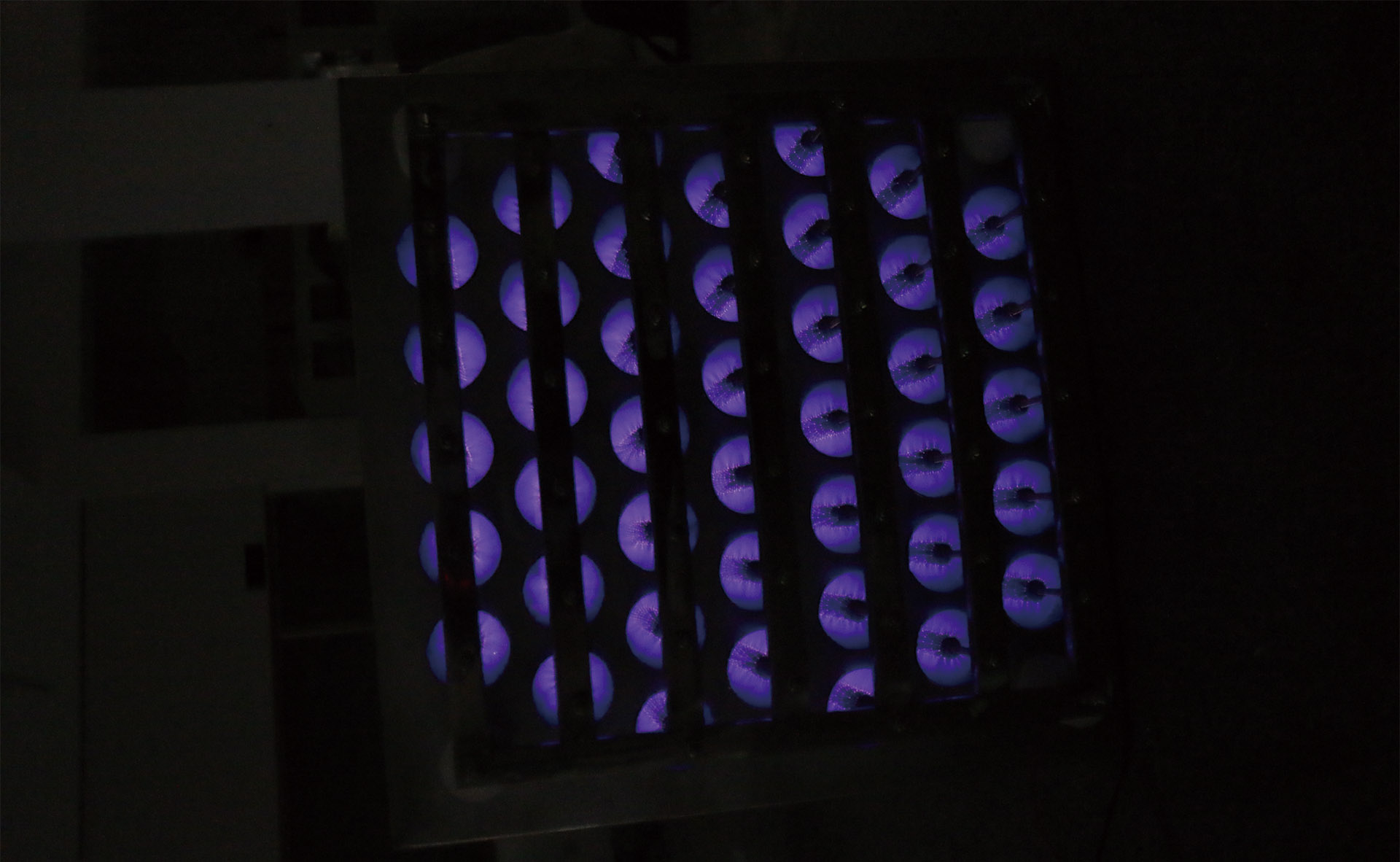

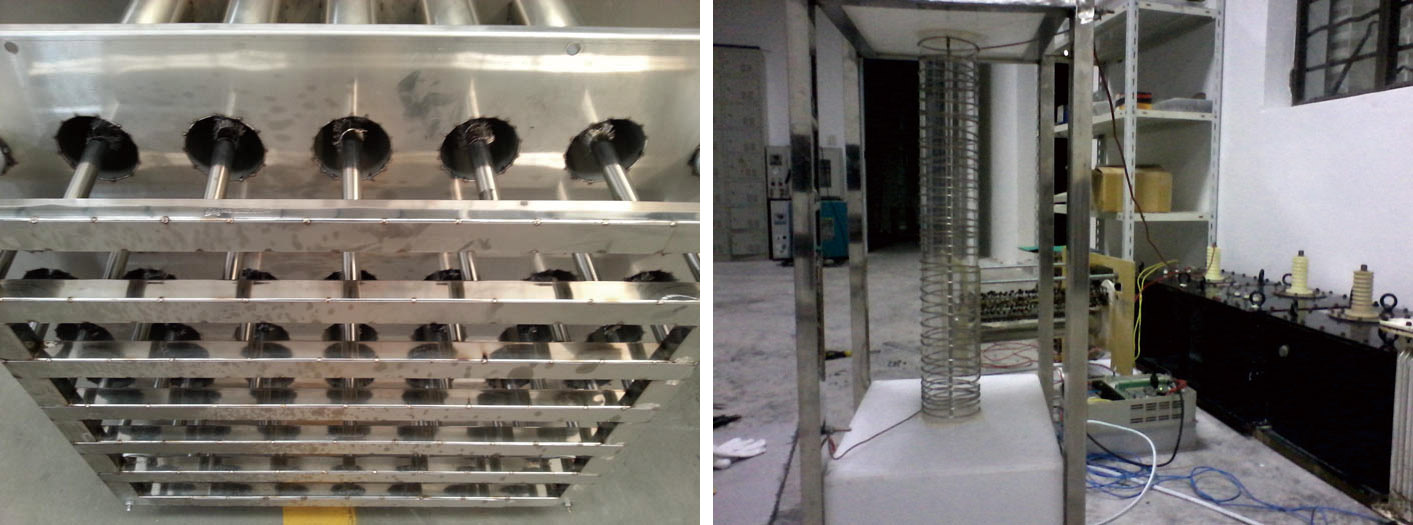

Electric Field Technology
